The RI 4188 can be used for applications where USB signals need to be fed through a shielded wall.

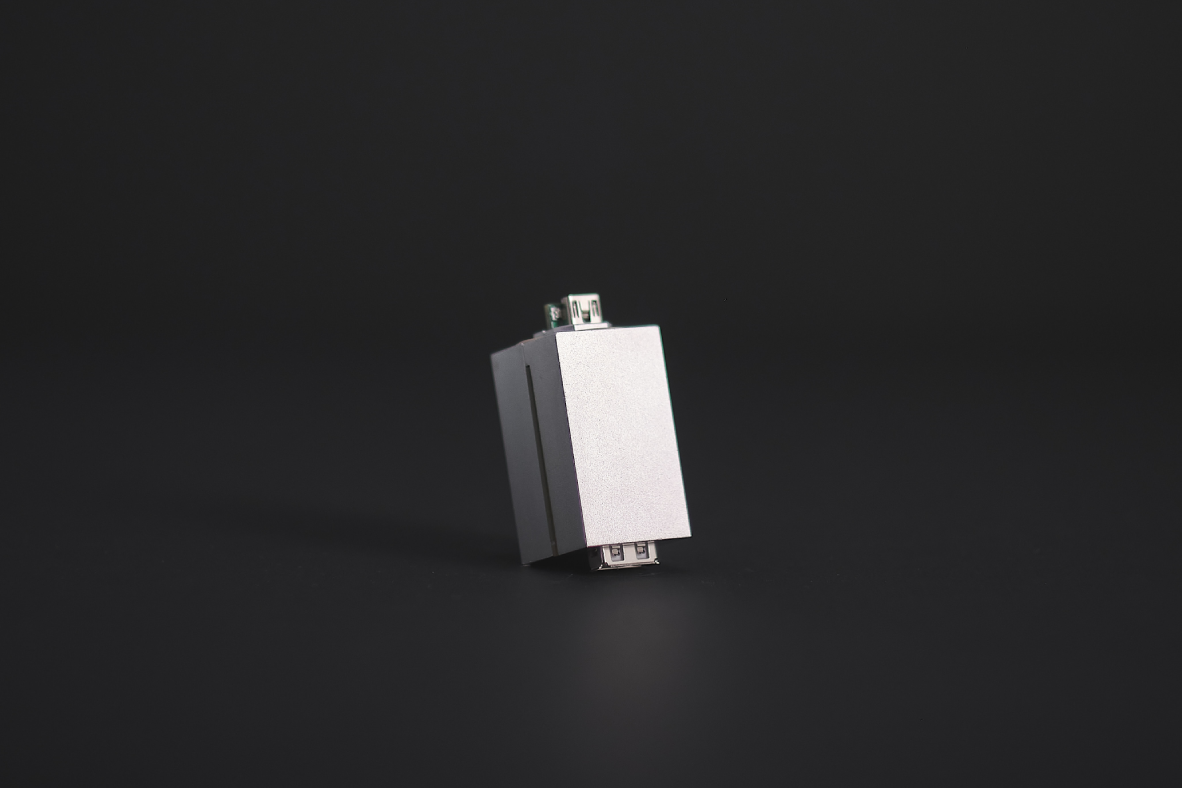

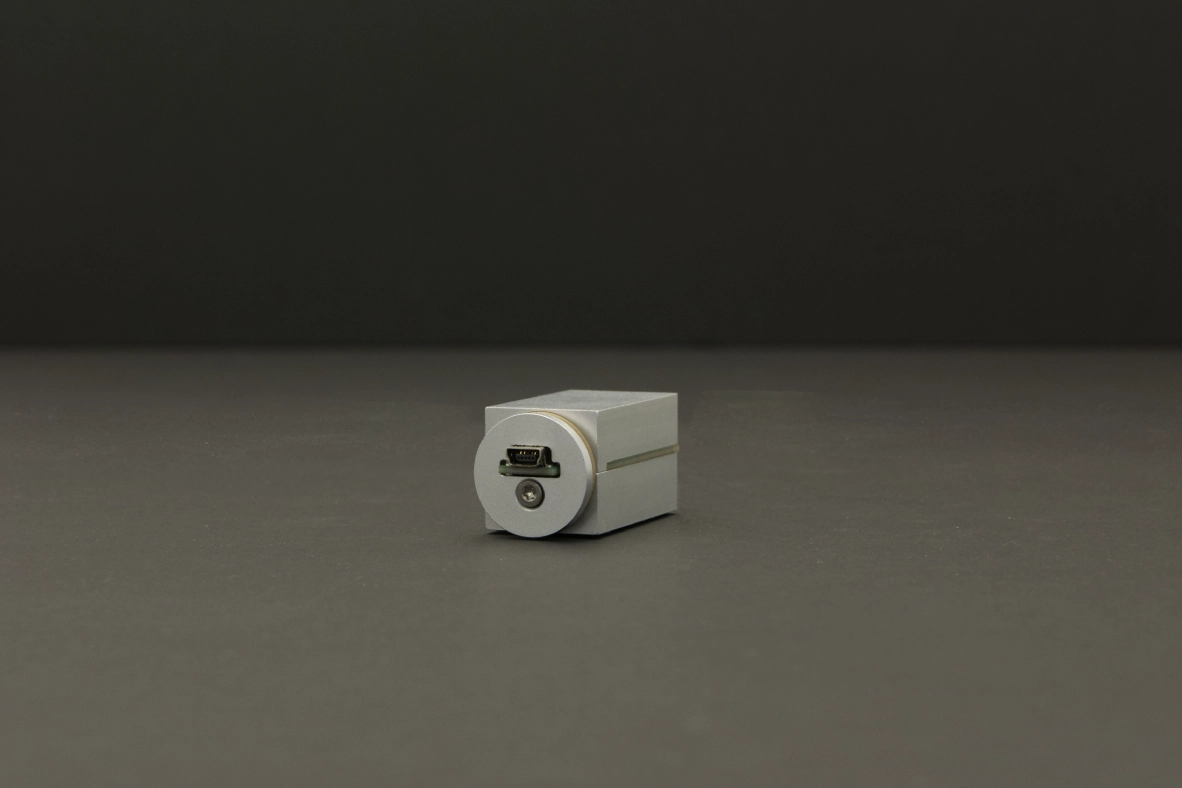

Feedthrough Filter RI 4188
USB 2.0, mini connectors, panel mount
Enables USB 2.0 signal transmission through shielded enclosures in one of our smallest designs, supporting up to 480 Mbps.
The Ranatec USB 2.0 Mini Feedthrough Filter enables the transmission of USB 2.0 signals through shielded enclosures using a compact form factor. It supports data rates up to 480 Mbps and features a USB Mini connector on the front and a standard USB Type A connector on the back. The filter is panel mountable, making it suitable for applications where space is limited, and USB connectivity within shielded environments is required.
Applications
Features
- USB 2.0 Hi-Speed 480 Mbps filter
- Panel mountable
Specifications
| Connector Front | USB Mini (f) |
| Connector Back | USB Type A, rectangle (f) |
| Material | Aluminium |
Electrical Interfaces
The physical connectors are located at each end of RI 4188.
Mechanical Interfaces
RI 4188 is prepared for panel mounting with one threaded screwhole and a washer on the front. It is delivered with an EMC shielding gasket for simple and reliable mounting.
Ordering
RI 4188 USB 2.0 Mini Feedthrough Filter
