The AC110/230V feedthrough filter is primarily designed to fit in Ranatec’s RF shield boxes, but can be used separately.

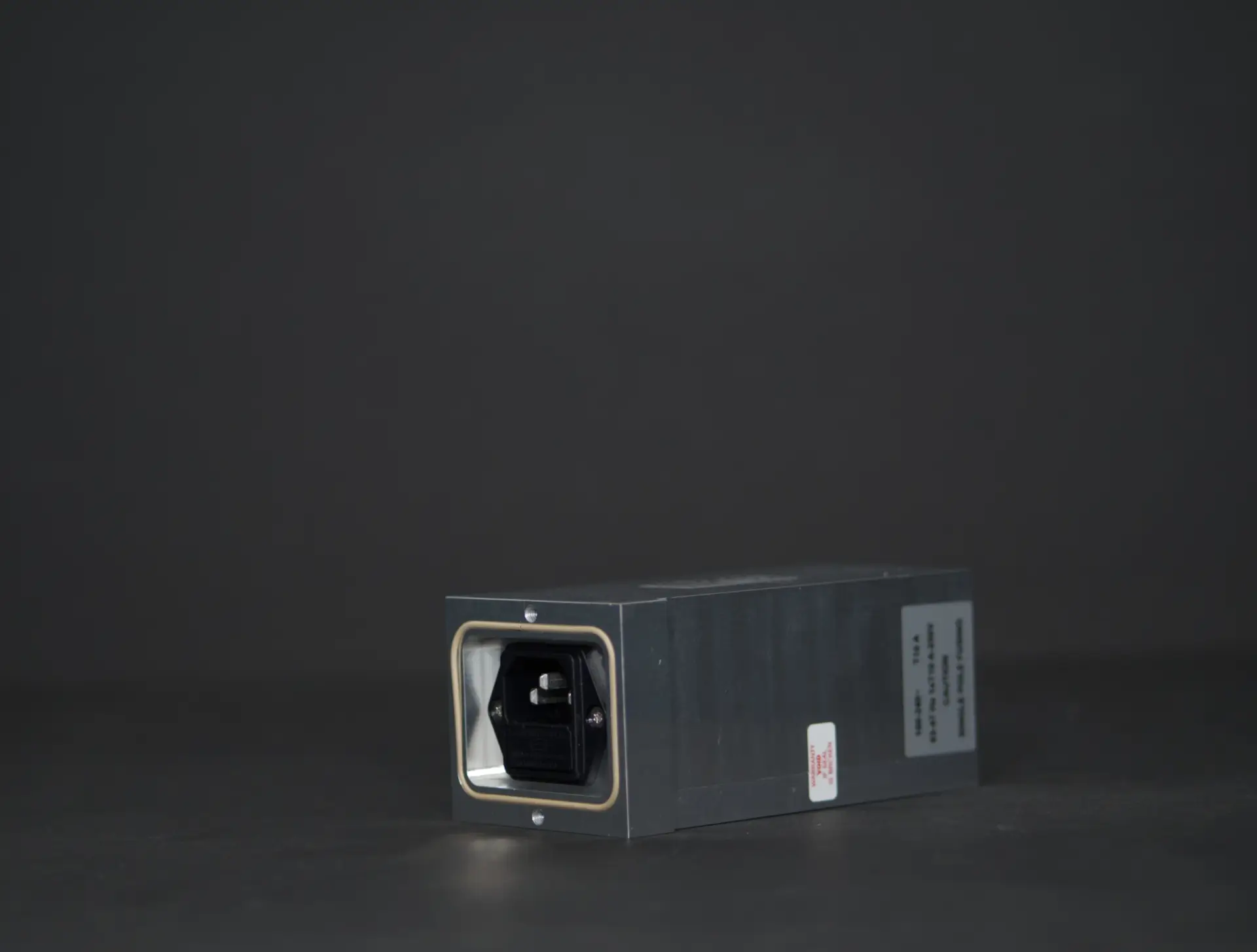

Feedthrough Filter RI 4206
110/230 VAC, 10 Amp, C14(m)-C13(f) connectors, inside shielded enclosure, panel mount
Enables AC power transmission through shielded enclosures, with 70 dB suppression at 10 GHz. This version is designed for mounting on the inside of a shielded enclosure, feeding the power to the inside of the enclosure.
The Ranatec 110/230 VAC Feedthrough Filter is engineered to facilitate the passage of AC power through shielded enclosures while maintaining electromagnetic integrity. Compatible with both 110V and 230V systems, it offers a filter suppression of 70 dB at 10 GHz and 60 dB at 1 GHz, ensuring minimal interference. It is panel mountable and CE compliant, making it suitable for various applications requiring reliable power delivery within shielded environments.
Applications
Features
- 110/230 VAC compatible
- 70 dB filter suppression at 10 GHz
- 60 dB filter suppression at 1 GHz
- Panel mountable
- CE compliant
Specifications
| Connector input (panel mount side) | C14 male |
| Connector output | C13 female |
| Material | Aluminum |
| Dimensions (LxWxH) | 129x65x56 mm |
| Weight | 528 g |
| Operating voltage | 110/230 VAC |
| Rated current | 10 A |
| Compliance | CE |
Electrical Interfaces
The physical connectors are located at each end.
Mechanical Interfaces
Prepared for panel mounting with two threaded M4 screwholes. It is delivered with an EMC shielding gasket for simple and reliable mounting.
Ordering
RI 4206 110/230 VAC Feedthrough Filter
